PRODUCT CODE: 3830

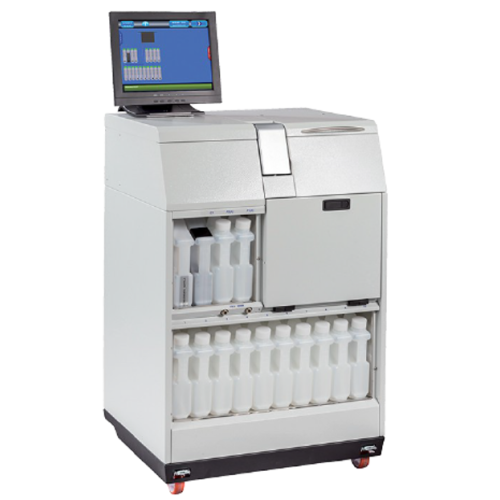

Closed circuit vacuum tissue processor - 3830

Closed circuit vacuum tissue processor: features

Fully enclosed, safe and highly reliable, the TP-300 processor is the right answer for the day-by-day tissue processing needs of every Histology laboratory.

The system has a processing capacity of 300 specimens, five paraffin containers and an easy to operate HMI (Human Machine Interface).

Designed with in mind concepts of specimens’ safety and operator ergonomics, the TP-300 is capable to perform also in not favourable environments. Its fully automated RFD (Remote Fill and Drain) device allows the user a safe, clean and easy reagents renewal.

FUNCTIONS

HMI software: user friendly, simple and clear
Available software languages: Chinese, English, German, Italian, Spanish, French, Polish, Czech, Portuguese
Reagent Management System: for reagents, waxes, filters
Wax Cleaning Cycle: efficient on-site system
Reagent Agitation: user selectable
Remote Fill/Drain automatic for reagents and purge agents
Data backup on USB port
User interface: LCD 15" color monitor with Touch Screen
Process Programs: 18
Delay: up to 14 days
Reverse processing special program
Process End Time mngt: for every program, with auto-store
Purge programs: 1 factory optimized, 3 custom
Charcoal filters: 2, easy substitution and safe handling
Anti-blackout and power failure device.
Remote alarm socket
Sample Processing Chamber fume aspiration
Easy maintenance and service
Xylene free

Cassettes processing capacity	300 standards cassettes
Equipped baskets	2 baskets made of stainless steel with capacity of 120/150 cassettes each
Processing programs	18
Favourite programs, with quick starting up	6
Washing programs	4
Process end time	Modifiable for each process, self-recording
Process start	Programmable by the user
Reagent tanks	10 reagent tanks, capacity 2.5 lt. 2 reagent tanks for washing reagents, capacity 2.5 lt.
Wax tanks	5 wax tanks, capacity 2.5 lt.
Reagent heating temperature	From room temperature to +65°C
Paraffin heating temperature	55 / 65 °C
Process pressures	600/1200 Hpa
Reagent agitation	6 levels of mixing
Vacuum and pressure function	4 (V/P, V, P, ambient)
Monitor	Color monitor Touch Screen LCD TFT – 15’’
USB port	N°5 for data transfer, backup, printer and UPS
Network	2 LAN net port 10/100Mb (Ethernet)
Alarm	Input for external alarm (48 v AC/DC max 1A)
Dimensions in mm	H1300 x W 720 x D 600 (with monitor)
Weight	154 Kg
Power supply	115/230 Vac – 50/60 Hz
Installed power	1000 W
Temperature control precision	+/- 1°C
